Model MCS Shaft-Mounted Electric Clutch, Customer-Mounted Armature. Go to home page.

MCS

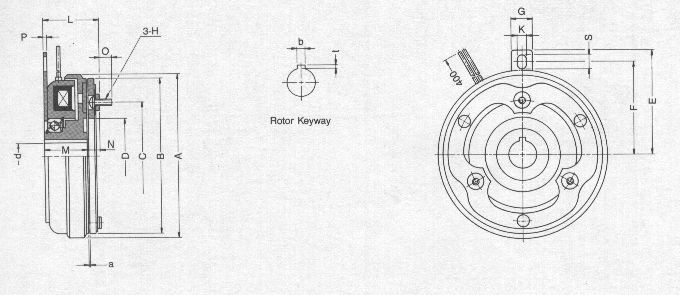

Dimensions in mm.

SIZE

0.6

1.2

2.5

5

10

20

Static Torque, NM

6

12

25

50

100

200

Coil Voltage (typical), DCV

24

24

24

24

24

24

Coil Power (at 20C), W

11

15

22

30

38

50

Max. Revolution, RPM

5,000

5,000

4,500

4,000

3,000

2,500

Bore

Dia. (Rotor), dH7

12

15

20

25

30

40

keyway, bXT

4x1.5

5x2

5x2

7x3

7x3

10x3.5

Diameter

A

74

93

116

144

178

225

B

70

88

110

137

172

217

C

50

60

76

95

120

158

D

36

46

54

67

89

108

E

50

65

70

85

112

132

F

44

58

62

77

100.5

120.5

G

12

14

16

16

22

22

H

M3

M4

M5

M6

M8

M10

K

4.5

5.5

6.5

6.5

9

11

Length

L

30

33.5

38.5

44

56

66.5

M

24

26.5

30

33.5

43

50

N

6

7

8.5

10.5

13

16.5

O

5

6.5

8

11

14

17.5

P

1.6

2

2

2.5

3.2

4

S

8

9

10.5

10.5

13

13

Air Gap, a

0.2

0.2

0.2

0.2

0.3

0.4

Weight, kg

0.5

1.0

1.8

3.5

6.5

11.5
