Model HVC Shaft-Mounted Electric Clutch, One-Piece Package. Go to home page.

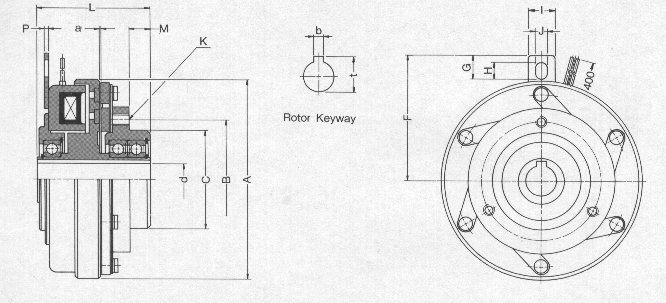

Dimensions in mm.
|
SIZE |
6 |
12 |
25 |
40 |
70 |
100 |
160 |
|
|
Static Torque, NM |
60 |
120 |
250 |
400 |
700 |
1,000 |
1,600 |
|
|
Coil Voltage (typical), DCV |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
|
|
Coil Power (at 20C), W |
30 |
40 |
50 |
60 |
80 |
100 |
120 |
|
|
Max. Revolution, RPM |
3,000 |
3,000 |
2,000 |
2,000 |
1,500 |
1,000 |
1,000 |
|
|
Bore |
Dia. (Rotor), dH7 |
22 |
28 |
35 |
50 |
50 |
75 |
75 |
|
keyway, bXT |
7X25.5 |
7X31.5 |
10X38.5 |
12X53.5 |
12X53.5 |
20X81 |
20X81 |
|
|
Diameter |
A |
143 |
171.5 |
203 |
228 |
267 |
317 |
368 |
|
B |
85 |
100 |
120 |
150 |
180 |
210 |
250 |
|
|
C |
70 |
80 |
100 |
120 |
150 |
180 |
215 |
|
|
F |
90 |
102 |
120 |
140 |
155 |
180 |
215 |
|
|
G |
10 |
11.5 |
13 |
13 |
18 |
18 |
30 |
|
|
H |
8 |
9 |
10.5 |
10.5 |
13 |
13 |
20 |
|
|
I |
14 |
14 |
16 |
16 |
24 |
24 |
30 |
|
|
J |
6.5 |
6.5 |
8.5 |
8.5 |
13 |
13 |
13 |
|
|
K |
3-M8 |
3-M8 |
3-M10 |
4-M10 |
6-M12 |
8-M12 |
8-M12 |
|
|
Length |
L |
80 |
90 |
90 |
102 |
120 |
135 |
165 |
|
M |
15 |
17 |
18 |
18 |
24 |
32 |
38 |
|
|
P |
3 |
3 |
4 |
5 |
6 |
8 |
8 |
|
|
Air Gap, a |
0.2 |
0.3 |
0.3 |
0.4 |
0.5 |
0.5 |
0.7 |
|
|
Weight, kg |
4.5 |
7.4 |
11.5 |
21 |
44 |
51 |
76 |
|
