Model FBN Flange-Mounted Brake, Armature Mounted on Inverted Hub. Go to home page.

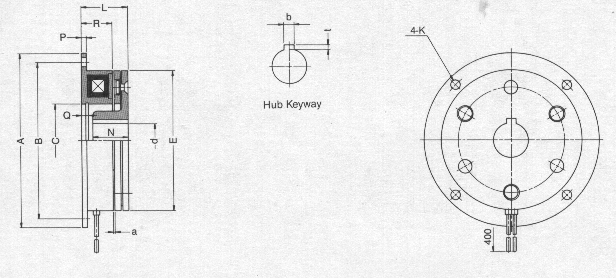

Dimensions in mm.

SIZE
0.6
1.2
2.5
5
10
20
Static Torque, NM
7.5
15
30
60
120
240
Coil Voltage (typical), DCV
24
24
24
24
24
24
Coil Power (at 20C), W
11
15
20
25
35
45
Max. Revolution, RPM
5,000
5,000
4,500
4,000
3,000
2,500
Bore, Rotor & Hub
Dia., dH7
12
15
15
20
20
25
25
30
30
40
40
50
keyway, bXT
4x1.5
5x2
5x2
5x2
5x2
7x3
7x3
7x3
7x3
10x3.5
10x3.5
12x3.5
Diameter
AH8
80
100
125
150
190
230
B
72
90
112
137
175
215
CH7
35
42
52
62
80
100
E
63
80
100
125
160
200
K
5
6
7
7
10
10
Length
L
26.5
28.5
33
37
42
50.5
N
15
20
25
30
38
45
P
2
2.5
3
3.5
4
5
Q
3.5
4.3
5
5.5
6
7
R
18
20
22
24
26
30
Air Gap, a
0.2
0.2
0.2
0.2
0.3
0.4
Weight, kg
0.5
0.8
1.4
2.4
4.8
9.5
