Model SAB Spring-actuated fail-safe brake. Go to home page.

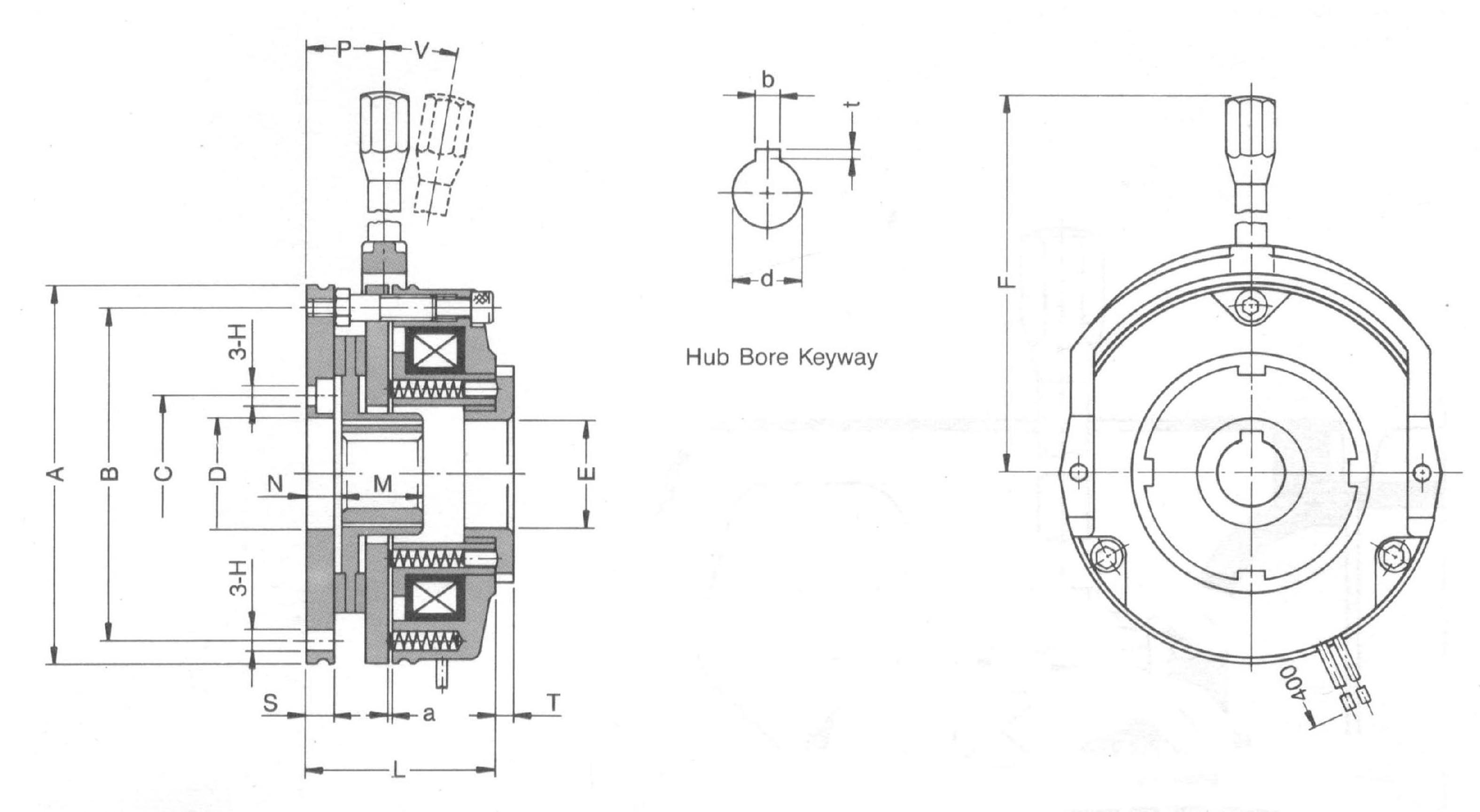

Dimensions in mm.
|
SIZE |
0.4 |
0.8 |
1.6 |
3.2 |
6 |
8 |
15 |
24 |
|||||||
|
Static Torque, NM |
4 |
8 |
16 |
32 |
60 |
80 |
150 |
240 |
|||||||
|
Coil Voltage (typical), DCV |
24,96,190 |
24,96,190 |
24,96,190 |
24,96,190 |
24,96,190 |
24,96,190 |
24,96,190 |
24,96,190 |
|||||||
|
Coil Power (at 20C), W |
20 |
25 |
30 |
40 |
50 |
65 |
85 |
110 |
|||||||
|
Max. Revolution, RPM |
3,000 |
3,000 |
3,000 |
3,000 |
3,000 |
3,000 |
2,000 |
2,000 |
|||||||
|
Standard Bore |
Dia., dh7 |
11 |
15 |
15 |
20 |
20 |
25 |
25 |
30 |
25 |
30 |
35 |
40 |
40 |
50 |
|
keyway, bXT |
4x1.5 |
5x2 |
5x2 |
5x2 |
5x2 |
7x3 |
7x3 |
7x3 |
7x3 |
7x3 |
10x3.5 |
10x3.5 |
10x3.5 |
12x3.5 |
|
|
Diameter |
A |
84 |
102 |
127 |
147 |
162 |
188 |
215 |
252 |
||||||
|
B |
72 |
90 |
112 |
132 |
145 |
170 |
196 |
230 |
|||||||
|
C |
30 |
45 |
56 |
62 |
74 |
84 |
100 |
120 |
|||||||
|
DH7 |
20 |
30 |
40 |
45 |
55 |
65 |
75 |
90 |
|||||||
|
E |
19 |
24 |
35 |
40 |
48 |
52 |
62 |
72 |
|||||||
|
F |
95 |
110 |
140 |
165 |
185 |
220 |
260 |
300 |
|||||||
|
G |
3X4.5 |
3X5.5 |
3X6.5 |
3X6.5 |
3X9 |
3X9 |
6X9 |
6X11 |
|||||||
|
H |
3X4.5 |
3X5.5 |
3X6.5 |
3X6.5 |
3X9 |
3X9 |
3X9 |
3X11 |
|||||||
|
Length |
L |
42 |
48 |
59 |
66 |
76 |
84 |
96 |
108 |
||||||
|
M |
18 |
20 |
20 |
25 |
30 |
30 |
35 |
40 |
|||||||
|
N |
7.8 |
9.5 |
12.5 |
12 |
14 |
14 |
15 |
17.5 |
|||||||
|
P |
17 |
18 |
25 |
31 |
36 |
40 |
33 |
47 |
|||||||
|
S |
6 |
7 |
9 |
9 |
11 |
11 |
11 |
11 |
|||||||
|
T |
3.5 |
4 |
4 |
5 |
5 |
6 |
6 |
8 |
|||||||
|
V degrees |
10 |
8 |
8 |
8 |
8 |
8 |
12 |
12 |
|||||||
|
Air Gap, a |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
0.4 |
|||||||
|
Weight, kg |
1.2 |
1.8 |
3.0 |
4.8 |
7.3 |
12 |
18 |
27 |
|||||||
