Model
MMP
Clutch/Brake Module, Input-Flange-Mounted, Split-Shaft.
Go to home page.

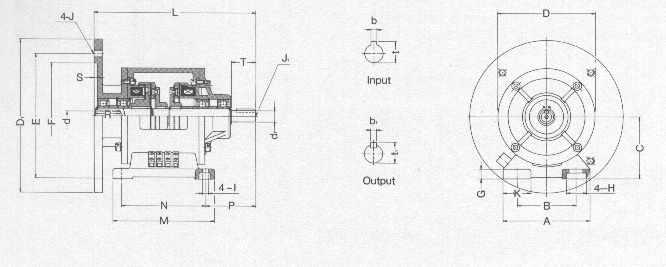

Dimensions in mm.
SIZE
0.6
1.2
2.5
5
10
20
Static Torque, NM
7.5
15
30
60
120
240
Coil Voltage (typical), DCV
24
24
24
24
24
24
Coil Power (at 20C), W
11
15
20
25
35
45
Input Bore
Dia., d
h7
11
14
19
24
28
38
Keyway, bXT
4X12.5
5X16
6X21.5
8X27
8X31
10X41.5
Output Shaft
Dia., d1
J6
11
14
19
24
28
38
Keyway, B1XT1
4X12.5
5X16
5X21
7X27
7X31
10X4.5
Diameter
A
90
110
140
175
200
240
B
60
80
105
135
155
195
C
+0/-0.5
65
80
90
112
132
160
D
100
125
150
190
230
290
D1
100
125
150
190
230
290
E
130
130
165
165
215
265
F
H7
110
110
130
130
180
230
G
10
12
15
15
18
20
H
13.5
15
20
24
28
28
I
6.5
9
11
11
14
14
J
M8
M8
M10
M10
M10
M12
J
1
M4
M4
M6
M6
M6
M10
K
27.5
32
35
42
45
47
Length
L
170
206
255
326
430
536
M
105
130
160
185
230
270
N
90
110
135
160
200
240
P
52.5
63
80
108
145
188
R
27
32
42
52
62
82
S
5
5
5
5
6
6
T
25
30
40
50
60
80
Weight, kg
2.8
5.5
9.4
16
28
52
