Model
TMP
Clutch/Brake Module, Double
IEC
C-Face.
Go to home page.

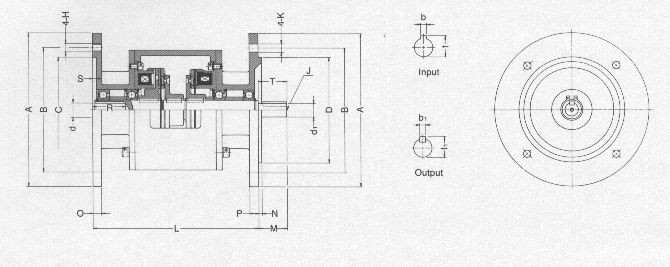

Dimensions in mm.
SIZE
0.6
1.2
2.5
5
10
20
Static Torque, NM
7.5
15
30
60
120
240
Coil Voltage (typical), DCV
24
24
24
24
24
24
Coil Power (at 20C), W
11
15
20
25
35
45
Input Bore
Dia., d
h7
11
14
19
24
28
38
Keyway, bXT
4X12.5
5X16
6X21.5
8X27
8X31
10X41.5
Output Shaft
Dia., d1
J6
11
14
19
24
28
38
Keyway, B1XT1
4X12.5
5X16
5X21
7X27
7X31
10X41.5
Diameter
A
160
160
200
200
250
300
B
130
130
165
165
215
265
C
h7
65
80
90
112
132
160
D
h7
110
110
130
130
180
230
H
M8
M8
M10
M10
M12
M12
J
M4
M4
M6
M6
M6
M10
K
10
10
12
12
14
14
Length
L
145
176
215
276
370
456
M
25
30
40
50
60
80
N
3.5
3.5
3.5
3.5
4
4
O
10
10
12
12
16
16
P
8
8
10
10
12
12
R
27
32
42
52
62
82
S
5
5
5
5
6
6
T
25
30
40
50
60
80
Weight, kg
2.8
5.6
9.5
16.8
29.5
53.5
