Model
FCD
Flange-Mounted Clutch, Customer-Mounted Armature.
Go to home page.

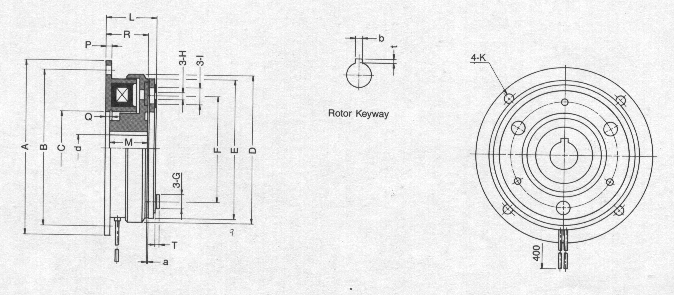

Dimensions in mm.
SIZE
0.6
1.2
2.5
5
10
20
Static Torque, NM
7.5
15
30
60
120
240
Coil Voltage (typical), DCV
24
24
24
24
24
24
Coil Power (at 20C), W
11
15
20
25
35
45
Max. Revolution, RPM
5,000
5,000
4,500
4,000
3,000
2,500
Bore, Rotor
Dia., d
H7
12
15
15
20
20
25
25
30
30
40
40
50
keyway,
bXT
4x1.5
5x2
5x2
5x2
5x2
7x3
7x3
7x3
7x3
10x3.5
10x3.5
12x3.5
Diameter
A
H8
80
100
125
150
190
230
B
72
90
112
137
175
215
C
H7
35
42
52
62
80
100
D
67
85
106
133
169
212
E
63
80
100
125
160
200
F
46
60
76
95
120
158
G
6
8
10
12
14
16
H
3.1
4.1
5.1
6.1
8.1
10.2
I
8
10
12
15
17
19
K
5
6
7
7
10
10
Length
L
28
31
36
40.5
46.5
55.5
M
22
24
27
30
34
40
P
2
2.5
3
3.5
4
5
Q
3.5
4.3
5
5.5
6
7
R
24
26.5
30
33.5
37.5
44
T
2
2.5
3
3.5
4
4.5
Air Gap, a
0.2
0.2
0.2
0.2
0.3
0.4
Weight, kg
0.5
0.9
1.8
3.7
6.8
13
